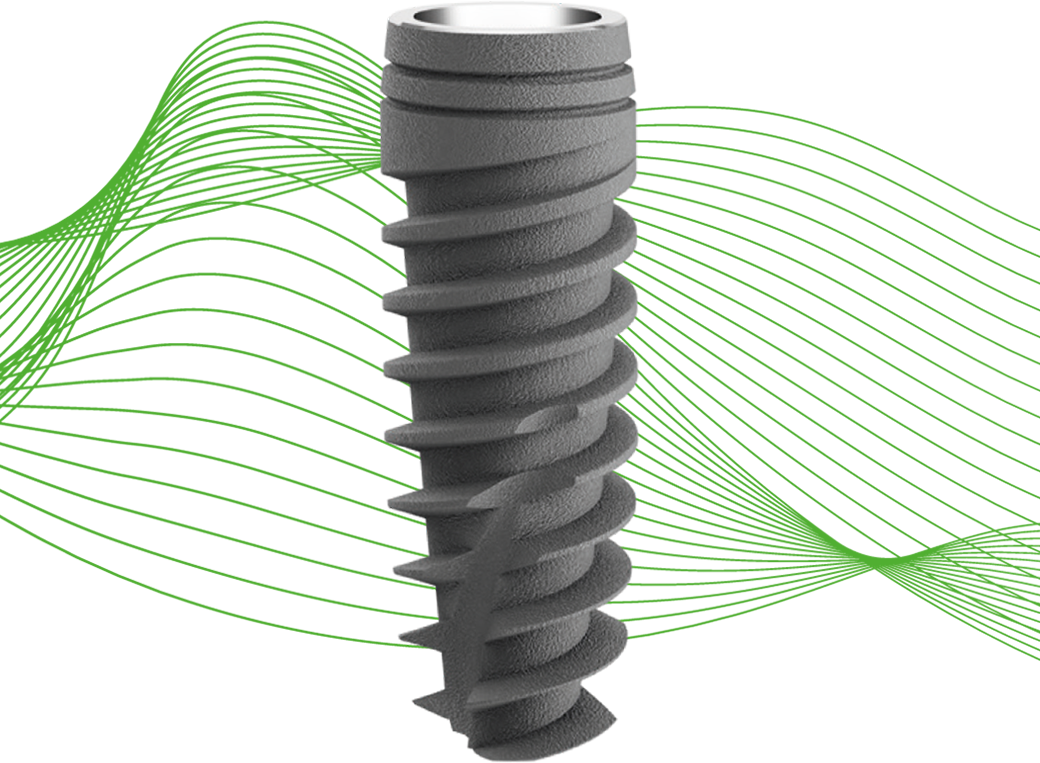

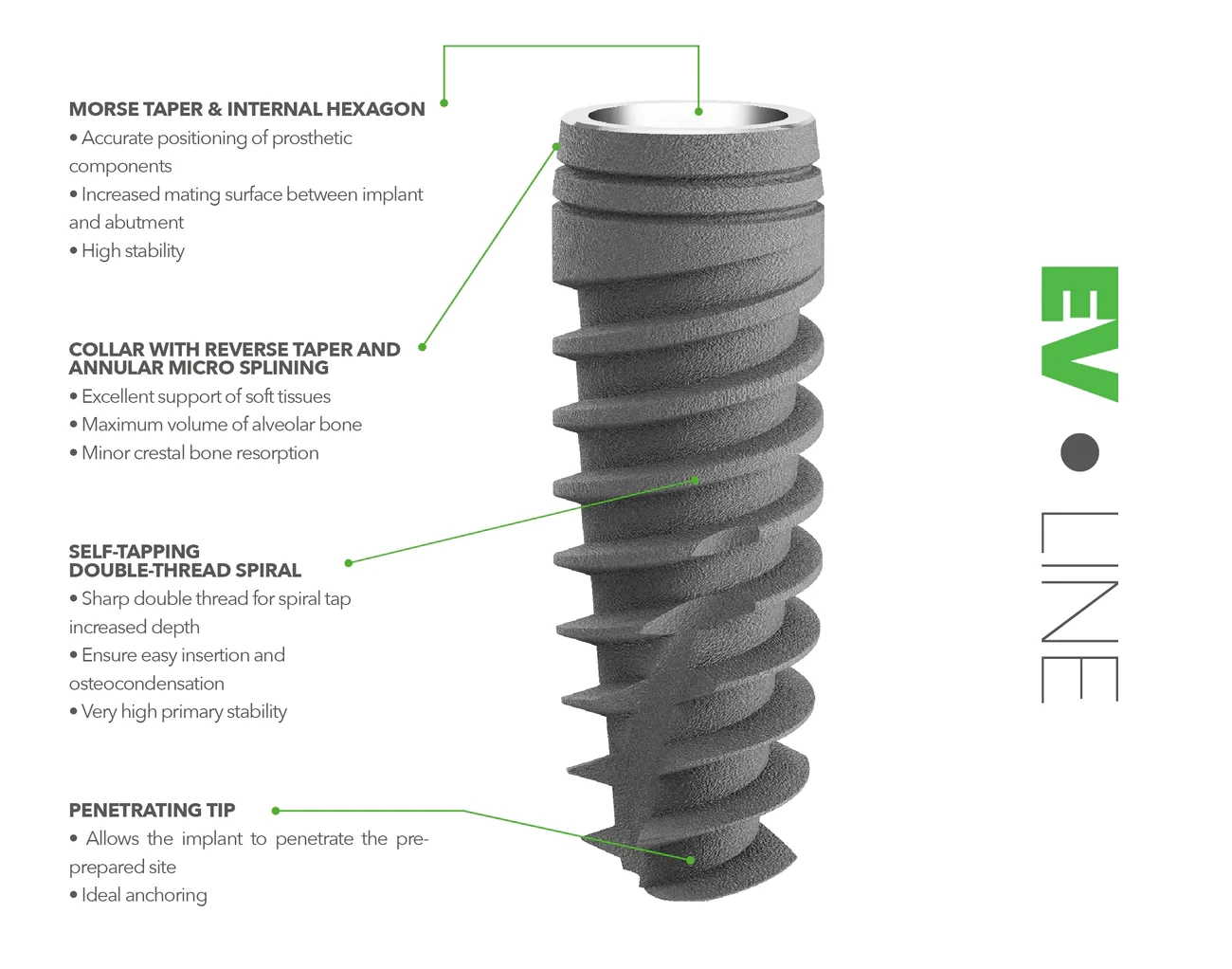

The DURA-VIT EV implant is suitable for surgical procedures in spongy bone since it is able to obtain
excellent primary stability thanks to the aggressive thread.
• Ideal in spongy bone (D3-D4).
• Allows condensation.
• Ideal in post-extraction sites.
• Under-sized implant site preparation.
• Grade 4 Titanium.
Take a look at all the uses of the EV line, the surgical technique, the instruments and the prosthetic solutions to be applied to the line.
A single connection common to the 3P, EV, WIDE and PTERYGO lines to facilitate management and choice from a wide range of abutments, attachments and posts.
DIAMETERS & LENGTHS

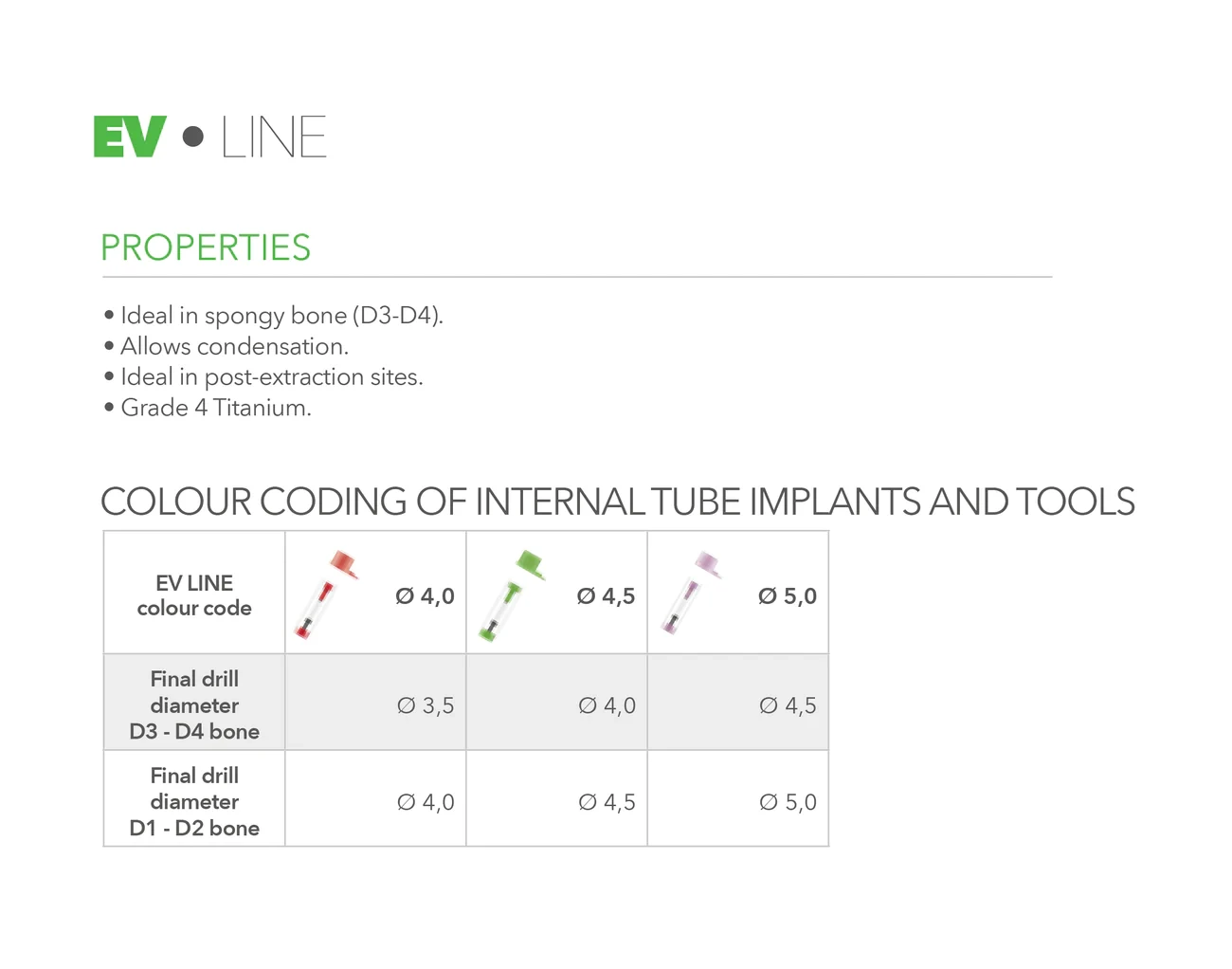

The color code of the implant diameters allows an intuitive selection of the surgical instruments; just pick them until you reach the instrument of the color of the internal vial containing the implant to be placed.

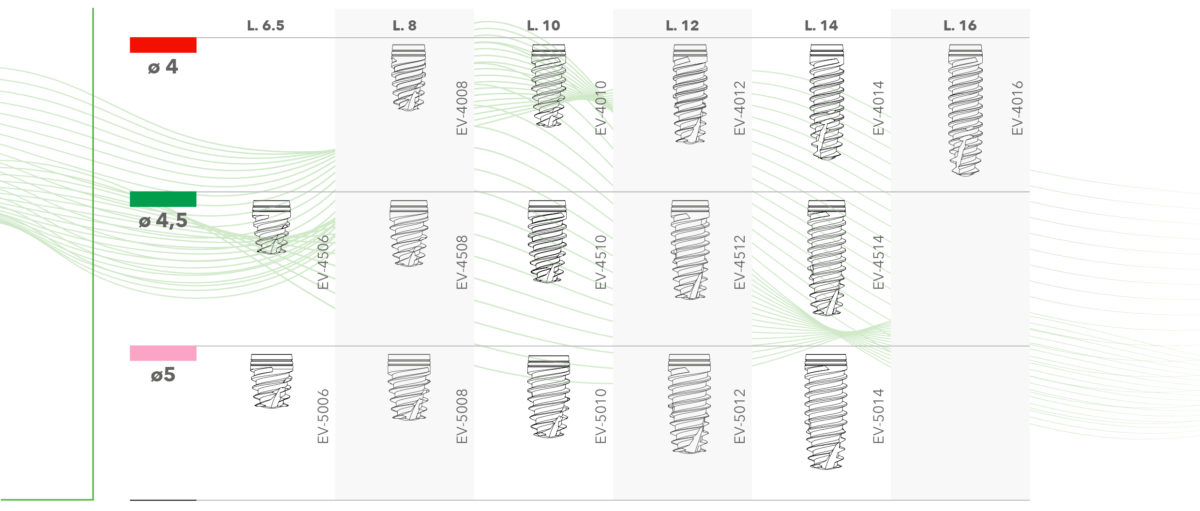

The EV line is available in 3 diameters (4.0 – 4.5 – 5.0 mm) and in 6 lengths (6.5 – 8.0 – 10 – 12 – 14 – 16 mm).
All sizes have a single CONEXA connection. Inside the surgical instrumentation there are the instruments (drills, compactors and countersinks) for the correct preparation of the implant sites and the stops that guide the instruments to the right preparation depth. Discover the kits and their components!
